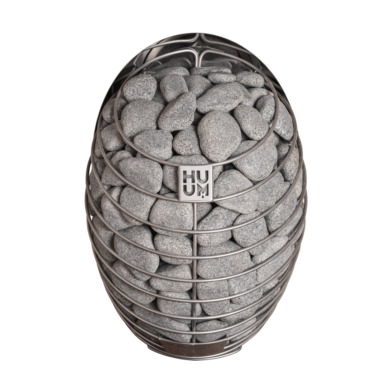

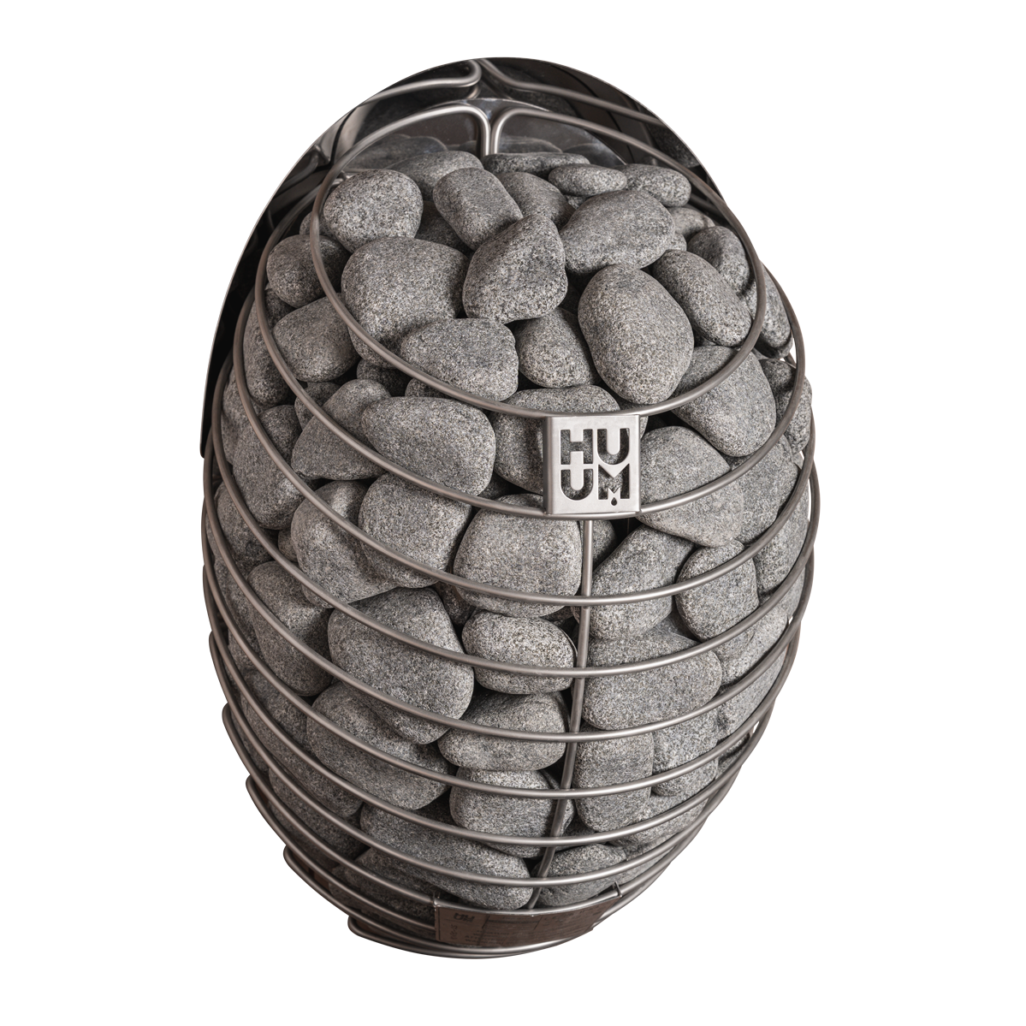

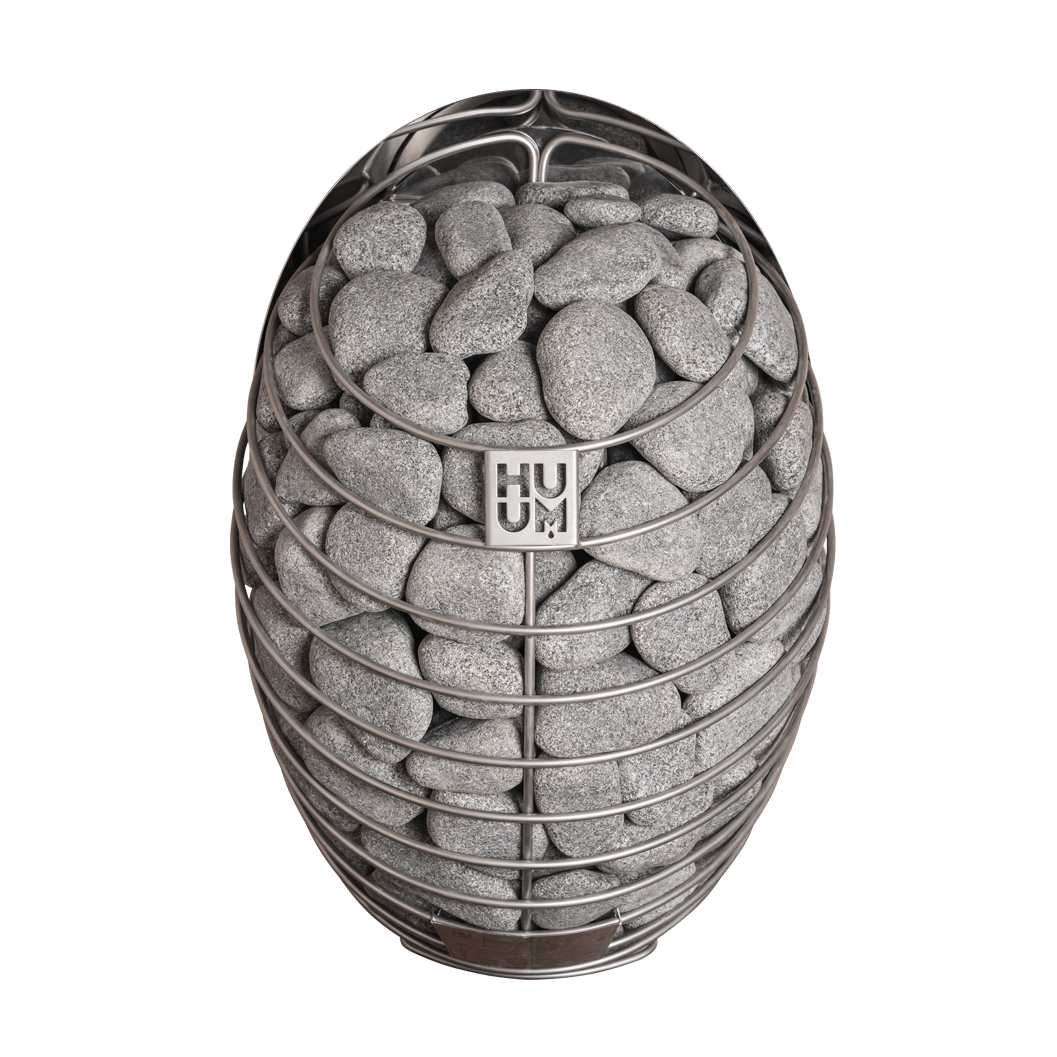

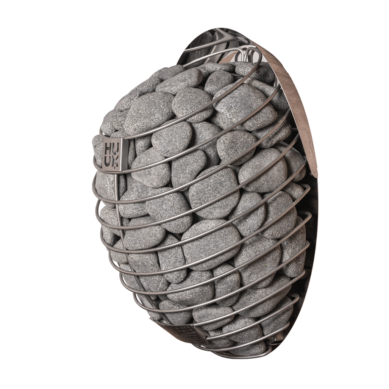

DROP electric sauna heater
- Unique design
- Mild and long-lasting steam
- Control with mobile app
Easy to use
Soft steam
Long-lasting relaxation
Award winning design
CE certificate
Made in Estonia

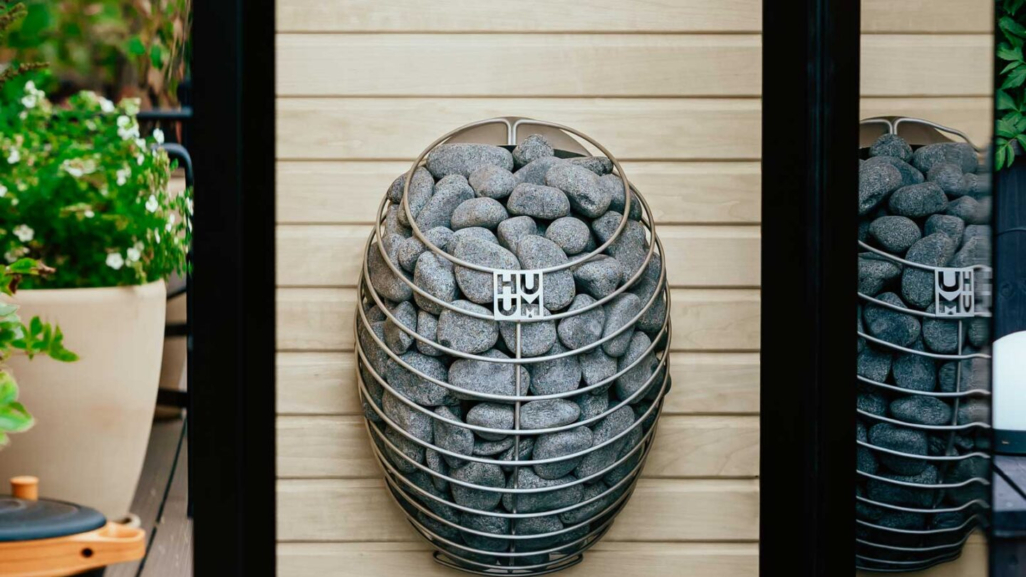

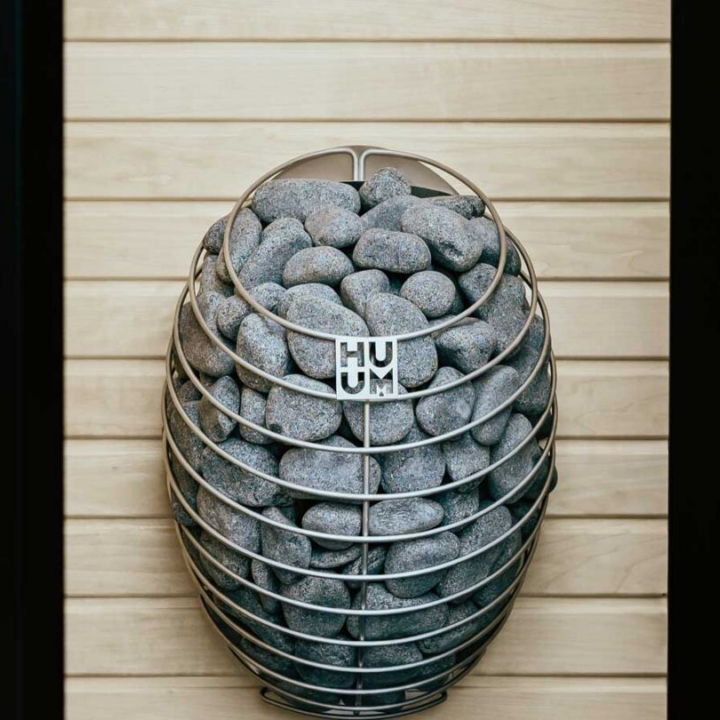

DROP electric sauna heater is inspired by the purest element of nature – a drop of water. The sleek and rounded design adds a touch of elegance to any sauna interior.
In 2015, the DROP was awarded with prestigious Red Dot design award. In addition to its aesthetic appeal, the DROP heater boasts several outstanding features.

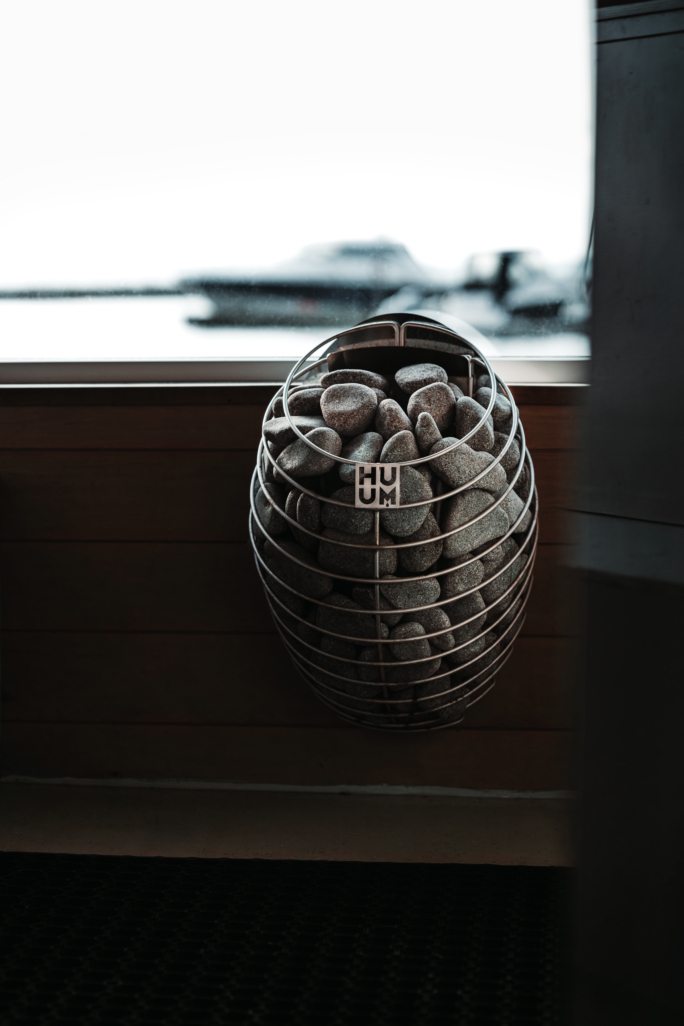

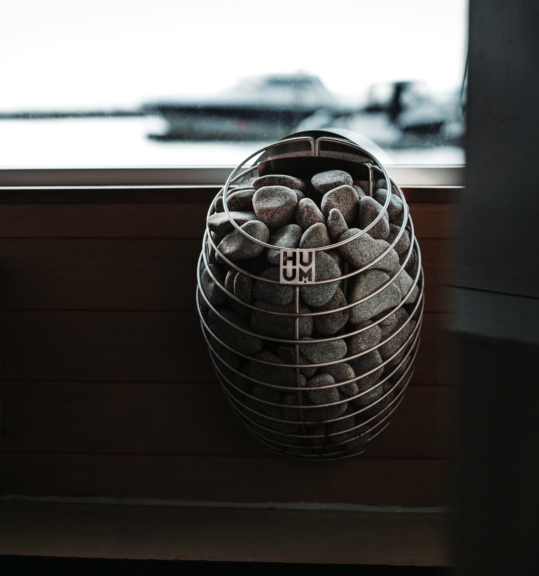

This wall-mounted heater, despite its compact size, can accommodate up to 55 kg of stones, which is more than most wood-burning heaters. It provides a gentle and long-lasting steam and comes with durable stainless steel details. With its impressive features and superior appearance, the DROP sauna heater is a must-have for any sauna enthusiast.
We strongly recommend including a safety railing in your sauna—either a custom design from your builder or our HUUM safety railing—for enhanced safety and comfort.
| Model | DROP 4 | DROP 6 | DROP 7 | DROP 9 |
|---|---|---|---|---|
| Heater | ||||
| Power rating (kW) | 4,5 | 6 | 7.5 | 9 |
| Steam room min (m3) | 3 | 5 | 7 | 8 |
| Steam room max (m3) | 7 | 9 | 11 | 13 |
| Holding capacity of sauna rocks (kg) | 55 | 55 | 55 | 55 |
| Weight (kg) | 11 | 11 | 11 | 12 |
| Height (mm) | 590 | 590 | 590 | 590 |
| Width (mm) | 390 | 390 | 390 | 390 |
| Depth (mm) | 335 | 335 | 335 | 335 |
| Connection | ||||
| Fuse | 10 A | 10 A | 16 A | 16 A |
| Supply voltage, 3-phase | 3/N~400V | 3/N~400V | 3/N~400V | 3/N~400V |
| Power cable (N x mm2) | 5 x 1,5 | 5 x 1,5 | 5 x 2,5 | 5 x 2,5 |

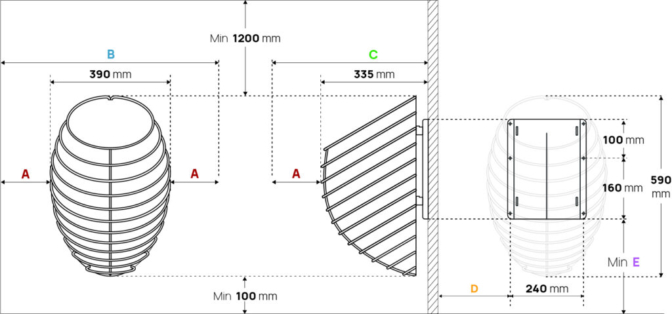

| Safety distances | ||||
| A (mm) | 100 | 120 | 150 | 150 |
| B (mm) | 590 | 630 | 690 | 690 |
| C (mm) | 435 | 455 | 485 | 485 |
| D (mm) | 170 | 190 | 220 | 220 |
| E (mm) | min. 310 | min. 310 | min. 310 | min. 310 |
- electric sauna heater
- wall mount
- 9 kW DROP sauna heater set includes a heat guiding device
- UKU sauna control system
- 55 kg of sauna stones with a diameter of 5–10 cm
- Heat-resistant power cable
- You can choose a control panel that suits the interior design of your sauna: GLASS, CLASSIC, or WOOD
-
- The UKU control system set already includes a black plastic control panel CLASSIC Black.

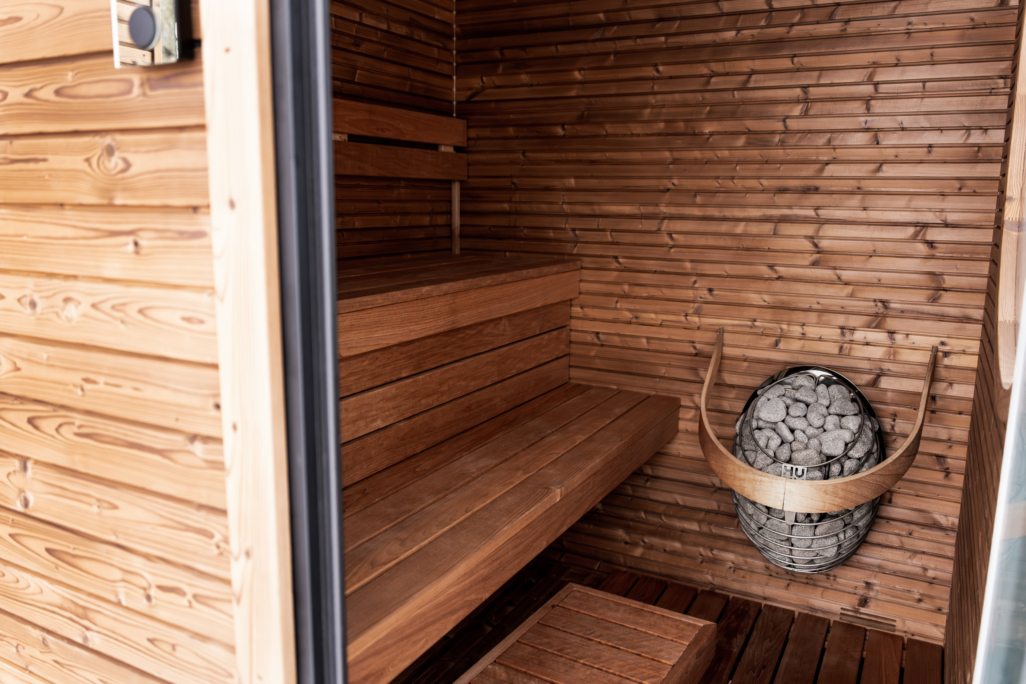

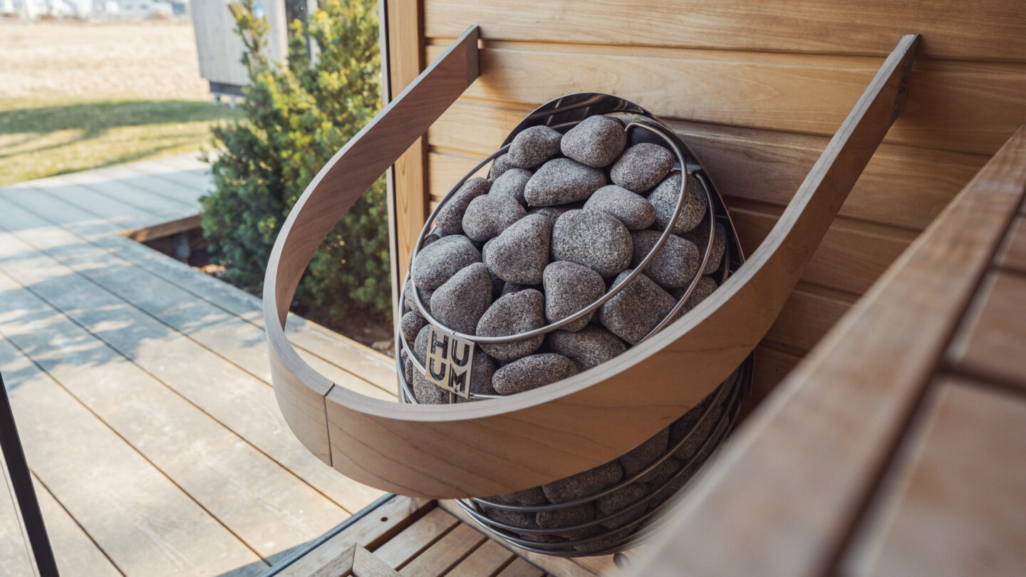

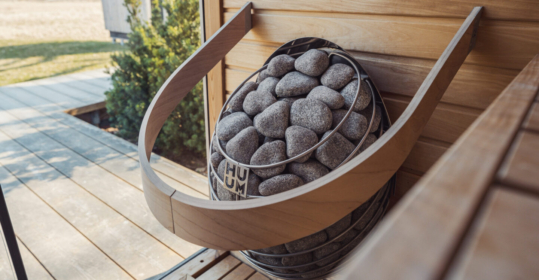

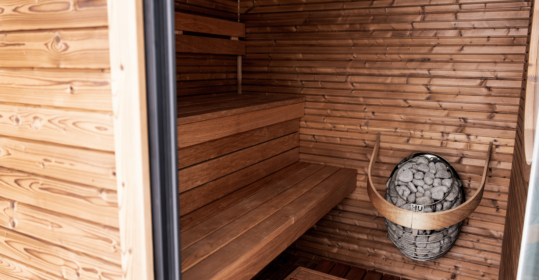

- The safety railing with wooden arches complements the design and adds safety.
- As a design option, DROP electric sauna heater can be embedded into the sauna bench.
-
- When the heater is embedded, at least 375 mm of the heater should protrude from the sauna bench surface.

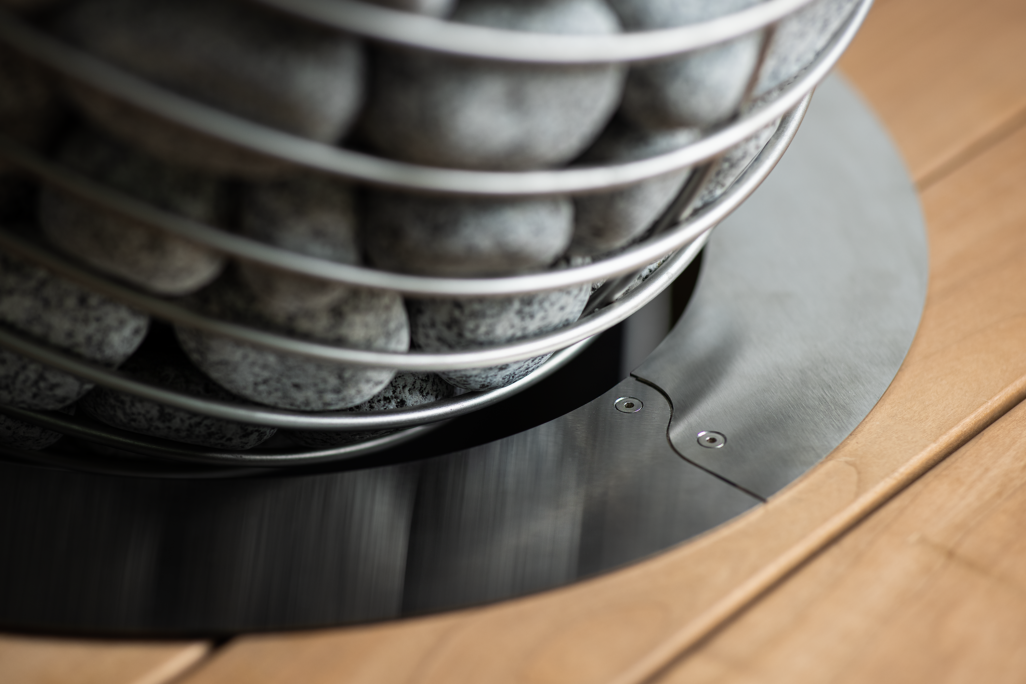

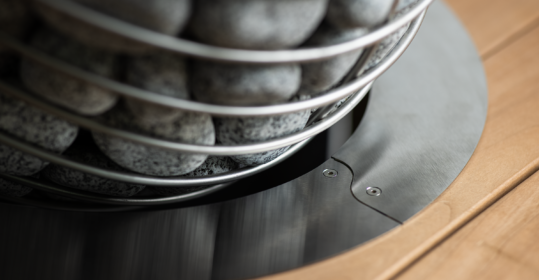

- Use the embedding flange of the DROP electric sauna heater to cover the cut rims of the opening.
- Use the drip tray of the DROP electric sauna heater to keep your sauna clean and dry.
DROP electric sauna heater is inspired by the purest element of nature – a drop of water. The sleek and rounded design adds a touch of elegance to any sauna interior.
In 2015, the DROP was awarded with prestigious Red Dot design award. In addition to its aesthetic appeal, the DROP heater boasts several outstanding features.
This wall-mounted heater, despite its compact size, can accommodate up to 55 kg of stones, which is more than most wood-burning heaters. It provides a gentle and long-lasting steam and comes with durable stainless steel details. With its impressive features and superior appearance, the DROP sauna heater is a must-have for any sauna enthusiast.
We strongly recommend including a safety railing in your sauna—either a custom design from your builder or our HUUM safety railing—for enhanced safety and comfort.
| Model | DROP 4 | DROP 6 | DROP 7 | DROP 9 |
|---|---|---|---|---|
| Heater | ||||
| Power rating (kW) | 4,5 | 6 | 7.5 | 9 |
| Steam room min (m3) | 3 | 5 | 7 | 8 |
| Steam room max (m3) | 7 | 9 | 11 | 13 |
| Holding capacity of sauna rocks (kg) | 55 | 55 | 55 | 55 |
| Weight (kg) | 11 | 11 | 11 | 12 |
| Height (mm) | 590 | 590 | 590 | 590 |
| Width (mm) | 390 | 390 | 390 | 390 |
| Depth (mm) | 335 | 335 | 335 | 335 |
| Connection | ||||
| Fuse | 10 A | 10 A | 16 A | 16 A |
| Supply voltage, 3-phase | 3/N~400V | 3/N~400V | 3/N~400V | 3/N~400V |
| Power cable (N x mm2) | 5 x 1,5 | 5 x 1,5 | 5 x 2,5 | 5 x 2,5 |
| Safety distances | ||||
| A (mm) | 100 | 120 | 150 | 150 |
| B (mm) | 590 | 630 | 690 | 690 |
| C (mm) | 435 | 455 | 485 | 485 |
| D (mm) | 170 | 190 | 220 | 220 |
| E (mm) | min. 310 | min. 310 | min. 310 | min. 310 |
- electric sauna heater
- wall mount
- 9 kW DROP sauna heater set includes a heat guiding device
- UKU sauna control system
- 55 kg of sauna stones with a diameter of 5–10 cm
- Heat-resistant power cable
- You can choose a control panel that suits the interior design of your sauna: GLASS, CLASSIC, or WOOD
-
- The UKU control system set already includes a black plastic control panel CLASSIC Black.
- The safety railing with wooden arches complements the design and adds safety.
- As a design option, DROP electric sauna heater can be embedded into the sauna bench.
-
- When the heater is embedded, at least 375 mm of the heater should protrude from the sauna bench surface.
- Use the embedding flange of the DROP electric sauna heater to cover the cut rims of the opening.
- Use the drip tray of the DROP electric sauna heater to keep your sauna clean and dry.
Accessories

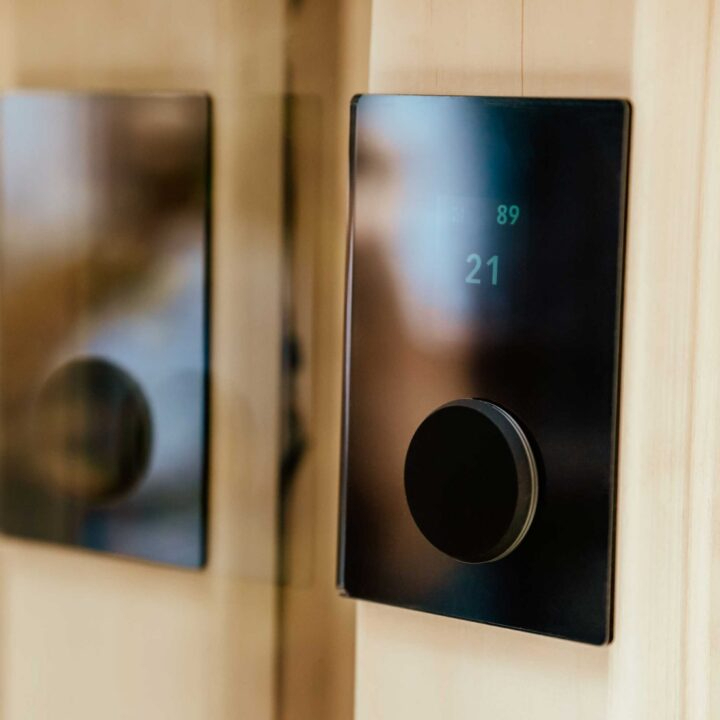

Classy and smart sauna controller
HUUM sauna controller represents an intuitive and efficient solution for heating the sauna. Sauna controllers are available with different enclosures, and the menu is simple and user-friendly. HUUMcontrollers heat the sauna through the smart UKU sauna control system. You can choose a suitable model, depending on whether you prefer to heat the sauna on site or via the HUUM mobile app. UKU sauna control system ensures simplicity and safety of sauna heating, and it is compatible with electric sauna heaters of various manufacturers.
HUUM app enables one to heat the sauna from a smartphone
HUUM mobile app allows you to heat the sauna from your phone, wherever you are. It doesn’t matter whether you are heading home from the office, finishing your evening jog or simply wish to have an unplanned rewarding sauna evening with your friends – just a few clicks on the smartphone, and a hot sauna awaits you!

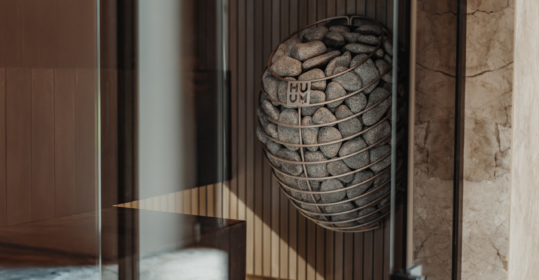

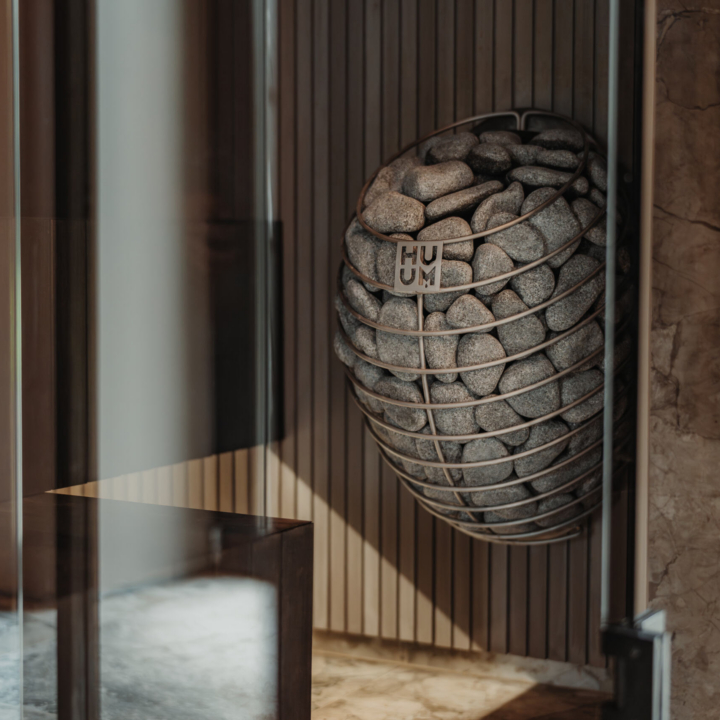

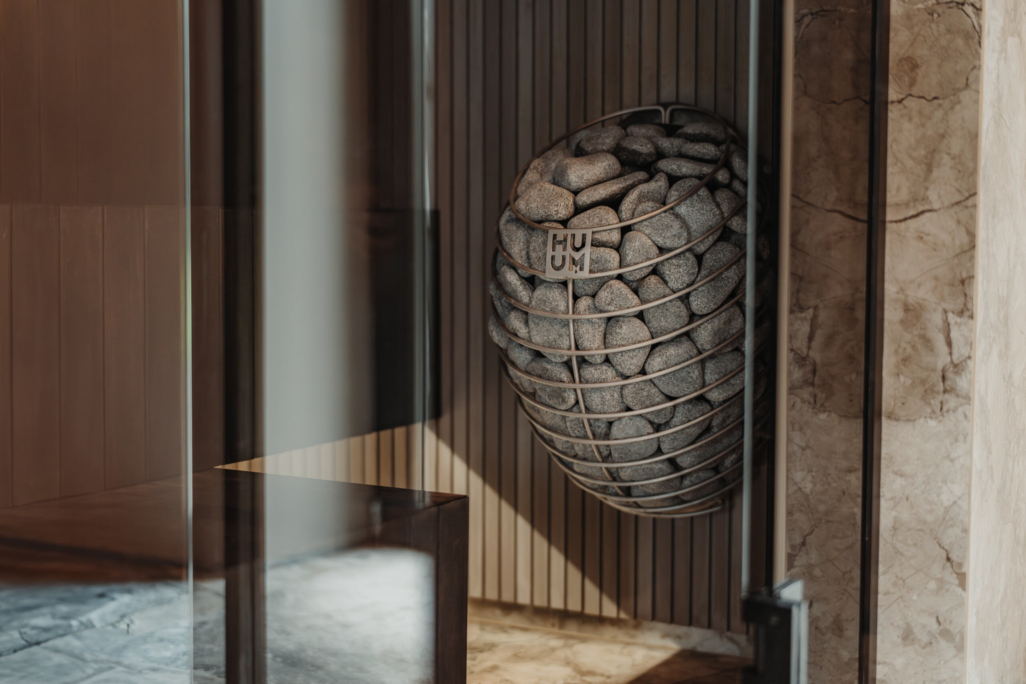

DROP electric sauna heater has won the Red Dot design award
The organic and minimalist design of the DROP electric sauna heater ensures that it’s the eye-catching focal point of each steam room. Well-planned construction of the sauna heater is centered on the compact shape, massive capacity and copious steam. DROP sauna heater holds 55 kg of sauna rocks that maintain long-lasting heat and provide mild steam.
DROP sauna heater has received the internationally recognized reputable Red Dot product design award for its eye-catching design and masterful craftsmanship.
Made with care in Estonia
HUUM sauna heaters are made from stainless steel, and they go through a lengthy and carefully monitored manufacturing process that assures the highest quality of each product.

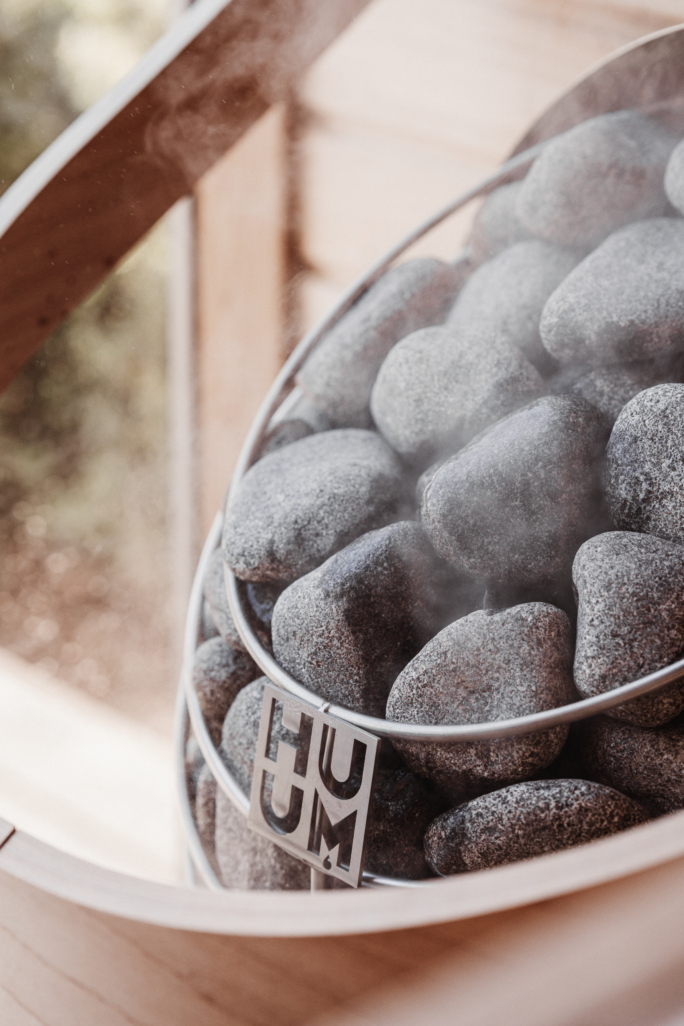

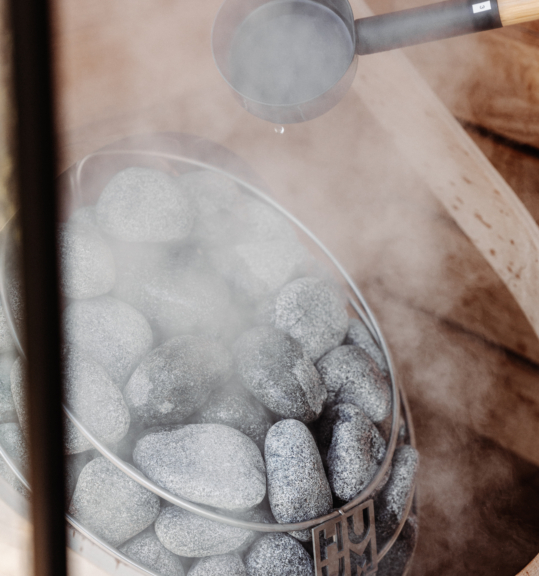

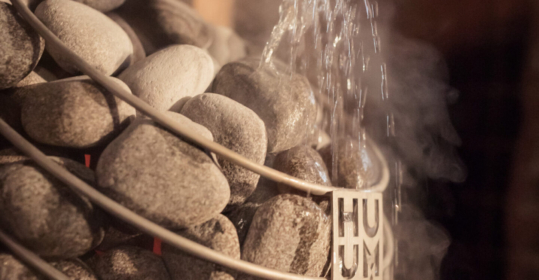

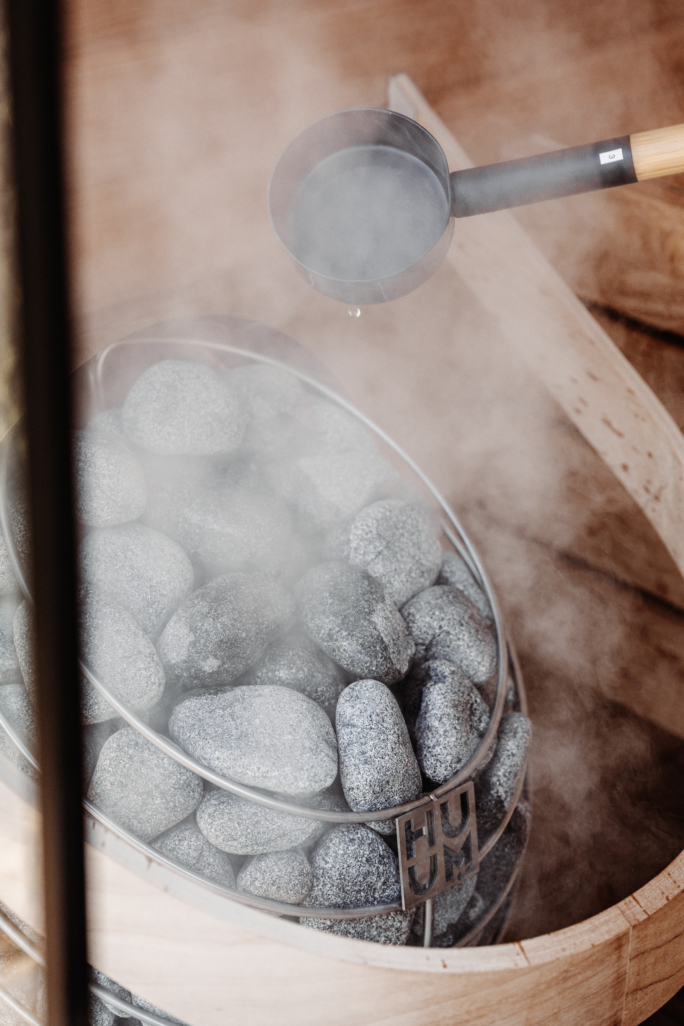

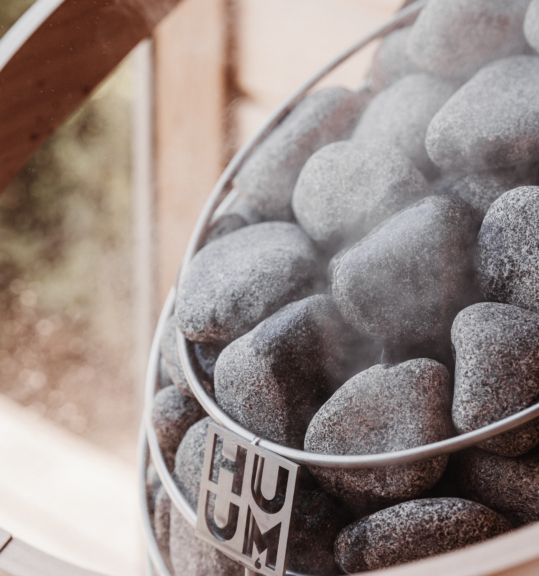

Soft steam that resembles the traditional sauna

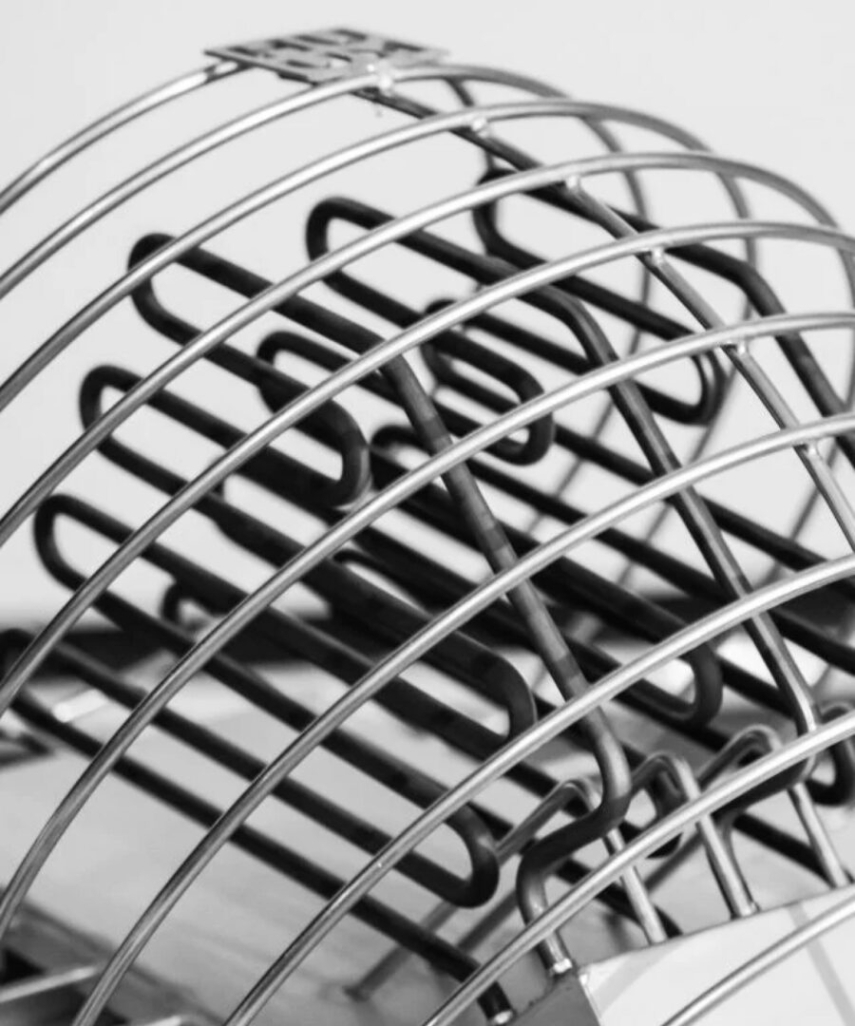

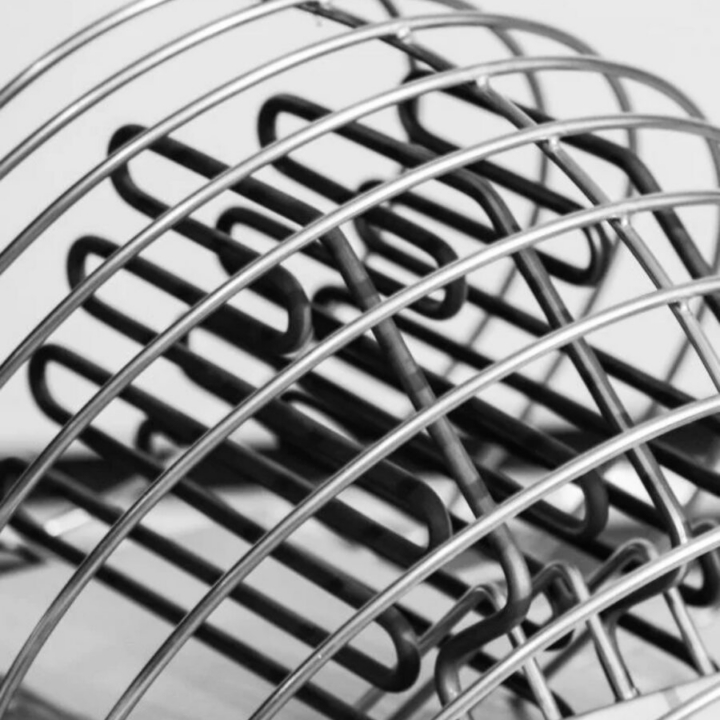

The amount of metal used in HUUM sauna heaters is very small – this ensures that the majority of the heat derives from the stones, and not from the metal. This maximizes the proportion of beneficial negative ions in the air, which is also high in the traditional wood-heated sauna.
This and the exceptionally large quantity of sauna rocks are the secret ingredients of the curative, gentle and long-lasting steam of our sauna heaters.
